EXCAVATOR MOUNTED WOOD GRAPPLE INTRODUCTION AND APPLICATIONS
Choosing the right mounted wood grapple for your excavator entirely depends on two important factors. One of them is the type of work that you’ll be doing with the excavator wood grapple and the other one is the capacity of the excavator that makes sure that the wood grapple works properly with the machine and there is coordination between the two. If you keep these two points in mind you’ll be able to select the right wood grapple that’ll make your work even more easier and convenient. YTCT is a leading wood grapple manufacturer in China.
WHAT IS AN EXCAVATOR WOOD GRAPPLE?
Excavator wood grapple is mostly used for wood, stone, rock, timber, and some sorts of loading, moving, and organizing. They should be such that they offer maximum flexibility and comfort to the drivers whenever they are using this attachment as a part of their work. YTCT is one of the foremost manufacturer of wood grapple for excavators that works on very powerful and efficient motors. What we want from our wood grapple for excavators is that it offers us quality output and increased productivity.
WHY DO WE NEED WOOD GRAPPLE?
· It can be used when loading.
· It can be used for unloading.
· They can carry short wood loads.
· They are used for lifting stone as well as timber.
· They are used for movement and organizing.
· They are used to handle material in the recycling industry.
· They are used by logging trucks.
· They are also used to pick wood waste.
· They are used to separate and sort materials.
· Widely used in forestry applications.
· Pick and place materials for different sizes.
HOW TO CHOOSE THE RIGHT EXCAVATOR WOOD GRAPPLE?
The wood grapple that you choose for your excavator should be such that it matches all your requirements. As the technology has paved way for a lot of dimensions the one wood grapple for your excavator that you choose should be such that it gives you the maximum benefits. You should critically examine the pressure of your machine so that you can evaluate the performance of your machine much better. Whatever attachment we choose we should keep in mind that it should not have a bad impact on our machinery. It should rather complement our machinery even more and it should make it work faster. The type of wood grapple that you choose for your business is entirely up to you as what you want- something fixed or something swinging. Each of them has its own pros and cons.
1.Mechanical Grapple
| Type | Model | Three Width | Two Width | Overall Height | Max.Opening Width | Weight | Suitable Carrier |
| （mm） | （mm） | （mm） | （mm） | （KG） | （Ton) | ||
| Mechanical Grapple | MG Mini | 450 | 265 | 1222 | 135 | 268 | 1-4 |
| MG 04 | 550 | 300 | 1540 | 150 | 320 | 5-8 | |
| MG 06 | 640 | 400 | 1680 | 160 | 580 | 10-15 | |
| MG 08 | 800 | 490 | 2200 | 250 | 1000 | 20-25 |
2.Single Cylinder Hug Grab
| Type | Model | Three Width | Two Width | Overall Height | Max.Opening Width | Weight | Cylinder Oil Pressure | Suitable Carrier |
| （mm） | （mm） | （mm） | （mm） | （KG） | (Lpm) | |||
| Hydraulic Grapple | HG 04 | 530 | 380 | 900 | 1400 | 420 | 50-100 | /6-10 |
| HG 06 | 600 | 440 | 1200 | 1600 | 700 | 90-110 | /10-15 |
3.Single Cylinder Grapple
| Type | Model | Three Width | Two Width | Overall Height | Max.Opening Width | Weight | Cylinder Oil Pressure | Suitable Carrier |
| （mm） | （mm） | （mm） | （mm） | （KG） | (Lpm) | （Ton) | ||
| Hydraulic Grapple | VG 04 | 580 | 350 | 1500 | 1400 | 400 | 50-00 | /6-10 |
4.Double Cylinder Grapple

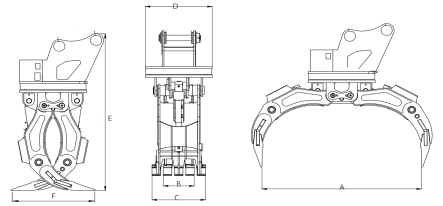

| Type | Model | B （Three Width） | A（Two Width） | Overall Height/ H | Max.Opening Width | Weight | Cylinder Oil Pressure | Suitable Carrier |
| （mm） | （mm） | （mm） | （mm） | （KG） | (Lpm) | |||
| Hydraulic Grapple | VS 04 | 420 | 240 | 1400 | 1400 | 415 | 30-55 | /6-10 |
| VS 06 | 550 | 350 | 1800 | 1600 | 800 | 90-110 | /10-15 | |
| VS 08 | 700 | 480 | 2300 | 2300 | 1600 | 130-170 | /20-30 |
| All Series and Model are used following motor and steel material： | |||
| M+S Motor | |||
| Q355B Steel | |||
| NM 400 Wear Resistant Steel | |||
| Delivery Time / Leading Time | |||
| 1-5 units | 5-10 Units | Greater than 10 Units | |
| 5-7 Work Days | 10-15 Work Days | To Be Negotiated | |
| Warranty | 1 year | ||
| payment terms | T/T，D/P，L/C | ||
| MOQ | 1 Set |
PROCESS OF WOOD GRAPPLE PRODUCTION
1. Cutting
2. Polishing
3. Welding
4. Assembling
5. Painting
6. Testing
7. Delivery
8. Using
SOME DETAILS THAT WE KEEP IN MIND IN THE PRODUCTION OF THE WOOD GRAPPLE
· Painting the surface.
· 360-degree rotator.
· A-grade welding.
· Producing the no. on the product.
· High-quality cylinder.
· The logo design.
