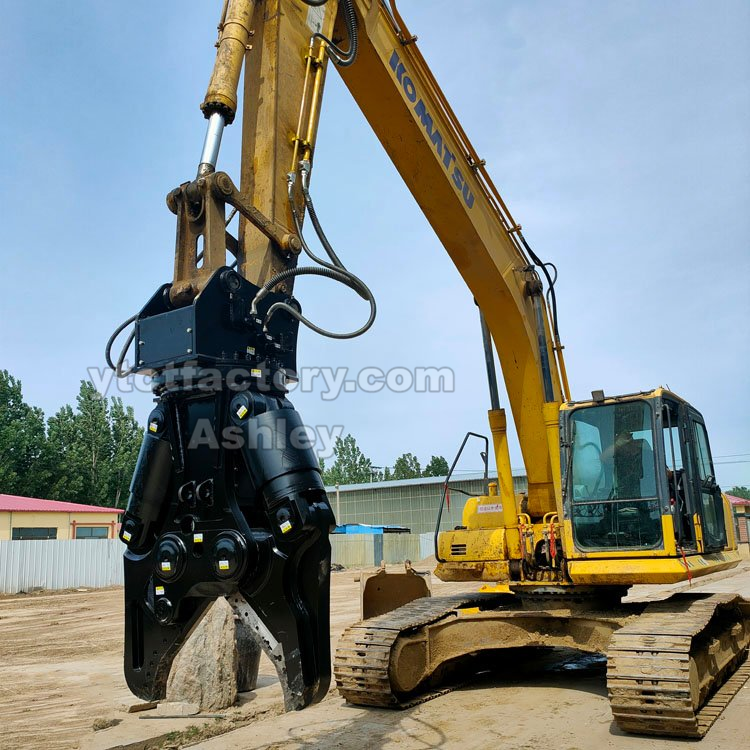

Hydraulic crushing shears are mainly used for housing demolition, crushing, cutting various metal materials, and disaster relief and rescue applications. Their main characteristics are easy to work, not damage to excavators, and low working noise.
Hydraulic shears are divided into fixed type, mechanical rotary type, and 360 degree hydraulic automatic rotation. Different types of hydraulic shears can be produced according to different customer needs.
The power comes from various brands and models of excavators, achieving product versatility and economy.
Construction personnel are not in contact with the construction and adapt to the requirements of complex terrain construction.
The entire machine is made of high-strength wear-resistant plates with high strength and light weight. The high-pressure large-diameter oil cylinder is equipped with a piston cylinder sleeve to provide strong force while avoiding damage to the piston rod. The two scissor plates are equipped with synchronous devices to achieve synchronous opening and closing. The blades are made of high toughness and high-strength steel to cut iron like mud. The blades are interchangeable on all sides and can be reused to greatly reduce losses. The double-sided guided friction blocks can be adjusted at any time to ensure cutting, A reasonable lubricating oil passage effectively reduces daily wear and friction coefficient, making shear smooth and powerful.

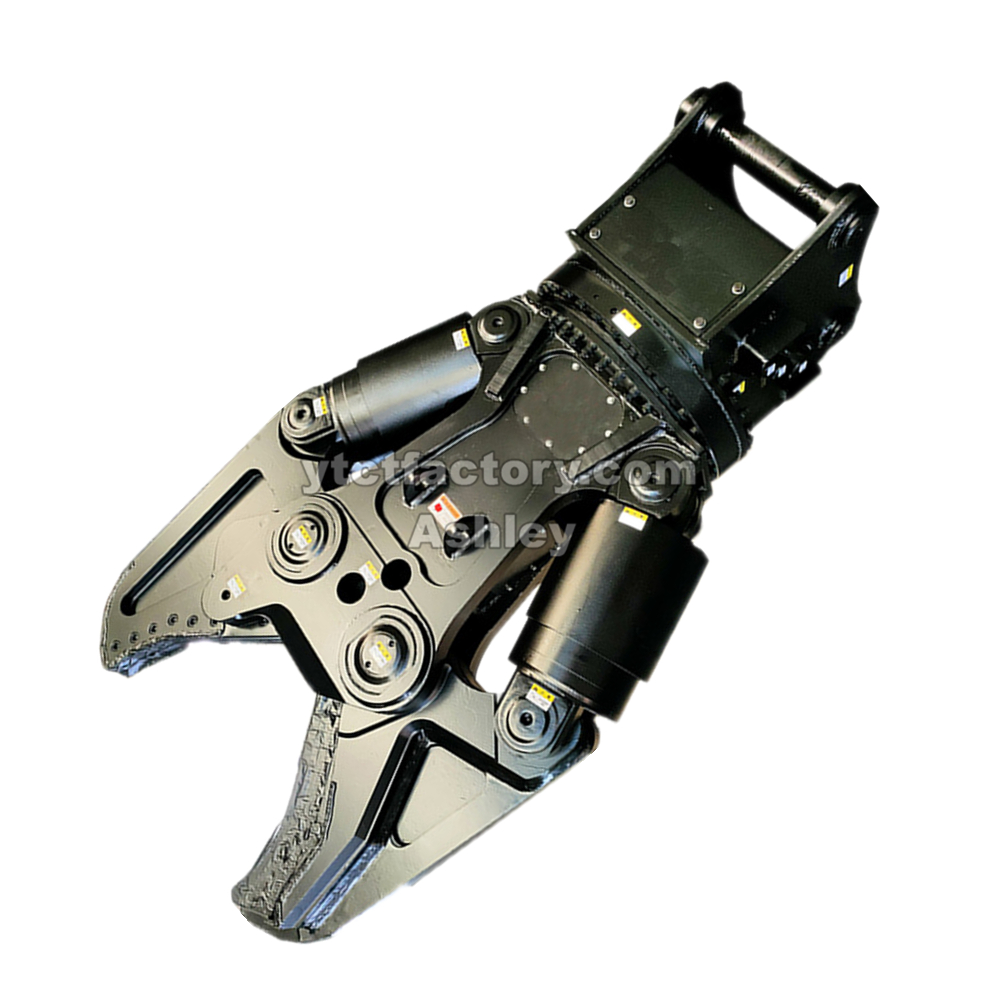

Mainly used for the dismantling of steel structures, cutting and recycling of waste materials. Due to its dual cylinder design, sturdy structure, large opening and closing angle, fast speed, and accurate and stable operation, it is favored by many large and medium-sized waste recycling stations and demolition industry professionals.
1. The main structure of the double cylinder shear is made of Swedish welded 400 wear-resistant plate.
2. The pin shaft is made of 42CrMo alloy steel with high strength and good toughness.
3. The oil cylinder adopts rolling technology and imported NSK oil seal, which is lightweight and has a long service life.
4. The blade is made of wear-resistant alloy steel, which is resistant to high temperature and deformation.
5. Plunger rotary motor, using vertical brake system, driven by self-protection hydraulic motor, capable of 360 degree rotation, equipped with customized balance valve to fix the scissor angle.
6. Small in size and more flexible, the dual cylinder ensures strong shear force, and high dismantling and shearing of steel bars in iron cans are more advantageous.

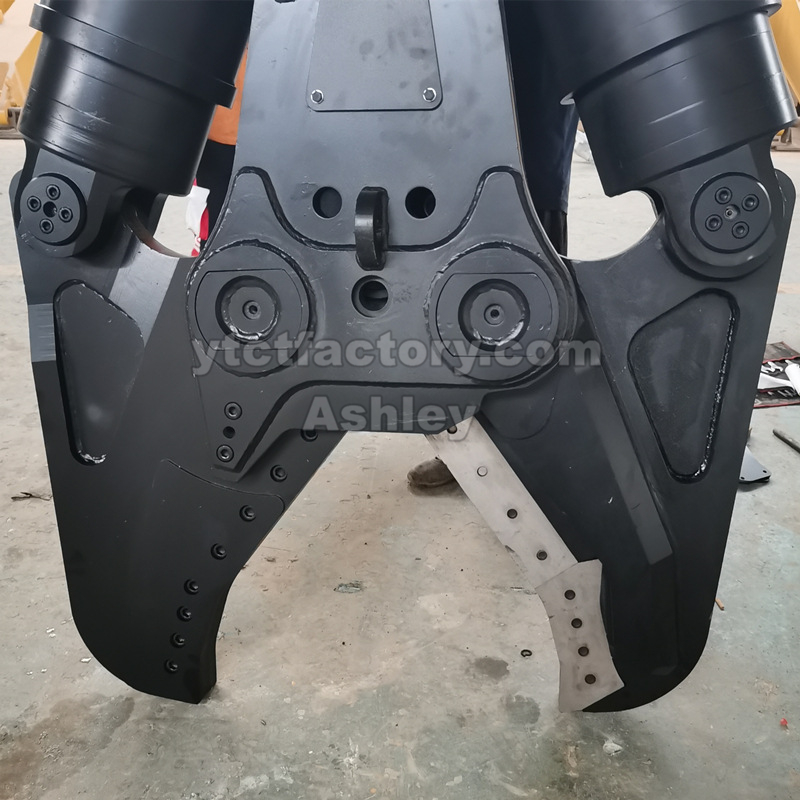

7. Detachable blade and jaw plate.
The hydraulic shear of the excavator can rotate 360 degrees hydraulically, improving the working ability;
Double cylinder hydraulic shear and rotary hydraulic shear are suitable for different operations, such as dismantling scrap cars, cutting steel bars, steel tanks, pipes, including light and thin steel structures, and waste steel treatment. They improve the structure of existing hydraulic double cylinder hydraulic pliers by adding alloy blades to develop double bar hydraulic shear for steel cutting. The shear force is significantly higher than that of the same series of eagle nose shear, Improve construction efficiency while meeting the customer's demand for the recovery of hard metals such as steel plates and steel bars.
Q1: Are you a trading company or a manufacturer?
A: We have our own factory.
Q2: Can you produce non-standard or customized products?
A: Yes, we can.
Q3: What is your delivery time?
A: Normally, if we have inventory, the delivery time is 7 days, and if not, it is 15-30 working days. But it also depends on product requirements and quantity.
Q4: Do you provide samples? Are these samples free of charge
A: Yes, we can provide samples, but they are not free.
Q5: What are your payment terms? A: 30% deposit wire transfer or irrevocable sight letter of credit.
Q6: What is your after-sales service?
A: After receiving the goods, we can provide remote installation guidance. If you have any questions, please feel free to contact us
Contact us and send inquiry to me ,will send price and details ,catalog to you soon!,thanks.
