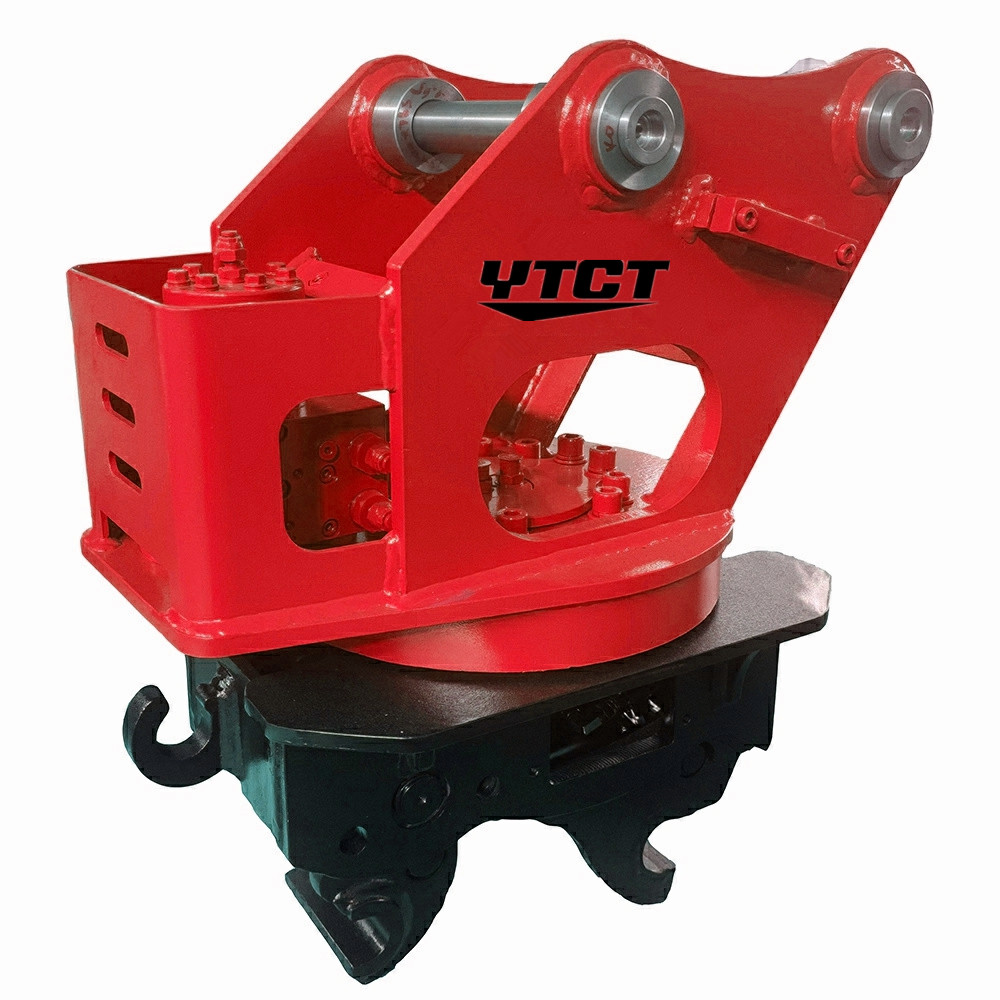

360 degree Quick hitches ( quick couplers) are used with construction machines to allow the rapid change of buckets and other attachments on
the machine, high efficiency and easy operation. widely used on excavator, mini excavator, backhoe loader and so on.
Choosing the right and high quality product is very important, looking forward to your trail order, we will be your long-term
reliable factory partner in China in the future.
PRODUCT DEATAILS
our machina fit to any brand excavator
for example ,your excavator weight is 4ton ,then choose YTCT02 machine is ok.
| UNIT | YTCT-MINI | YTCT02 | YTCT06 | YTCT08 | YTCT10 | |
| Overall Length | mm | 385 | 534-545 | 765 | 924-944 | 983-1050 |
| Overall Height | mm | 246 | 307 | 388 | 492 | 574 |
| Overall Width | mm | 175 | 258-263 | 353-436 | 449-483 | 543-568 |
| Pin to Pin Distance | mm | 80-150 | 230-270 | 380-420 | 460-480 | 473-540 |
| Forearm Open Width | mm | 80-140 | 155-170 | 232-315 | 306-340 | 375-411 |
| pin Diameter | mm | 25-40 | 45-50 | 60-70 | 70-80 | 80-90 |
| Weight | kg | 25 | 50-70 | 120-130 | 280-290 | 420-430 |
| Operating Pressure | kg/cm2 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
| Oil Flow | l/min | 10--20 | 20-40 | 60-80 | 80-100 | 100-140 |
| Suitable Excavator | ton | 1.5--4 | 4-8 | 9--16 | 17--23 | 25-35 |
GOODS PICTURE
OEM IS OK ,Any brand and color we could do .
