Release time：2021-05-28 Number of views :1245
YTCT Excavator Quick Coupler systems change work tools quickly and easily in a matter of seconds.
| Category | Unit | YTCT-MINI | YTCT-02 | YTCT-04 | YTCT-06 | YTCT-08 | YTCT-08S | YTCT-10 | YTCT-17 |
| Length | mm | 300-450 | 520-542 | 581-610 | 760 | 920-955 | 950-1000 | 965-1100 | 1005-1150 |
| Width | mm | 150-250 | 260-266 | 265-283 | 351-454 | 450-483 | 445-493 | 543-572 | 602-666 |
| Height | mm | 225-270 | 312 | 318 | 400 | 512 | 512-540 | 585 | 560-615 |
| Arm width | mm | 82-180 | 155-172 | 181-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-480 |
| Pins center distance | mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 520-630 |
| Pin diameter | mm | 20-45 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 |
| Cylinder stroke | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 500-650 |
| Vertical pins center distance | mm | 170-190 | 200-210 | 205-220 | 240-255 | 300 | 320 | 350-370 | 370-380 |
| Weight | kg | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 |
| Working pressure | kgf/cm² | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 | 30-400 |
| Necessary flow | l | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Excavator （any brand ) | ton | 1-4 | 4-6 | 6-8 | 12-16 | 18-25 | 25-26 | 26-30 | 30-40 |
YTCT Excavator quick coupler connection device

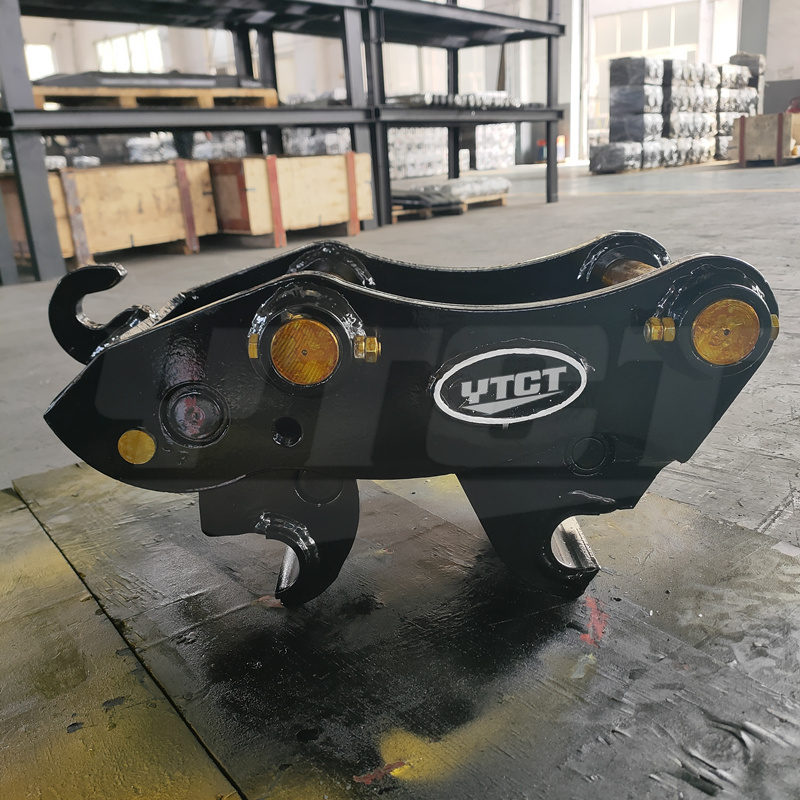

also called quick-change, quick coupling, can quickly install and switch various configuration attachments (bucket, ripper, breaker, hydraulic shear, etc.) on the excavator, and expand the scope of use of the excavator. And save time, reduce labor intensity, and improve the efficiency of the excavator. It can be divided into two types: hydraulic quick change and mechanical quick change. This time we recommend an explosive hydraulic excavator quick coupler.
The excavator quick coupler cylinder is expanded and contracted by the pilot oil of the excavator, thereby rotating the grapple hook to realize the connection and disassembly of the shaft.

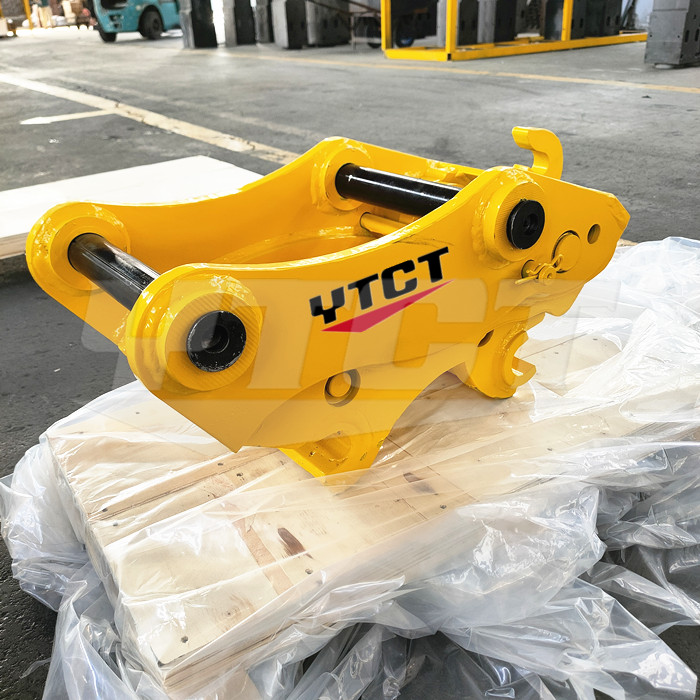

below picture is YTCT hydraulic quick hitch coupler for any brand excavator

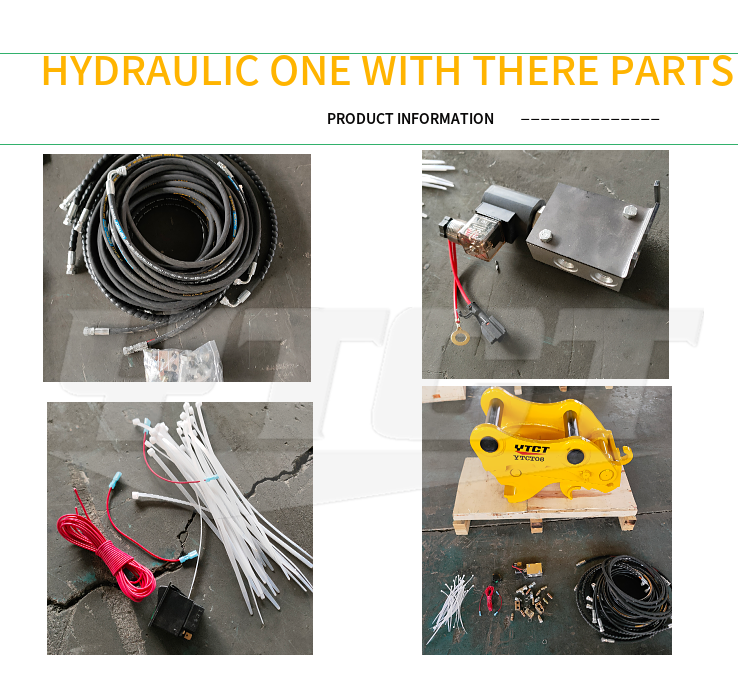

An electric switch is installed in the cab to facilitate the operation of the driver.

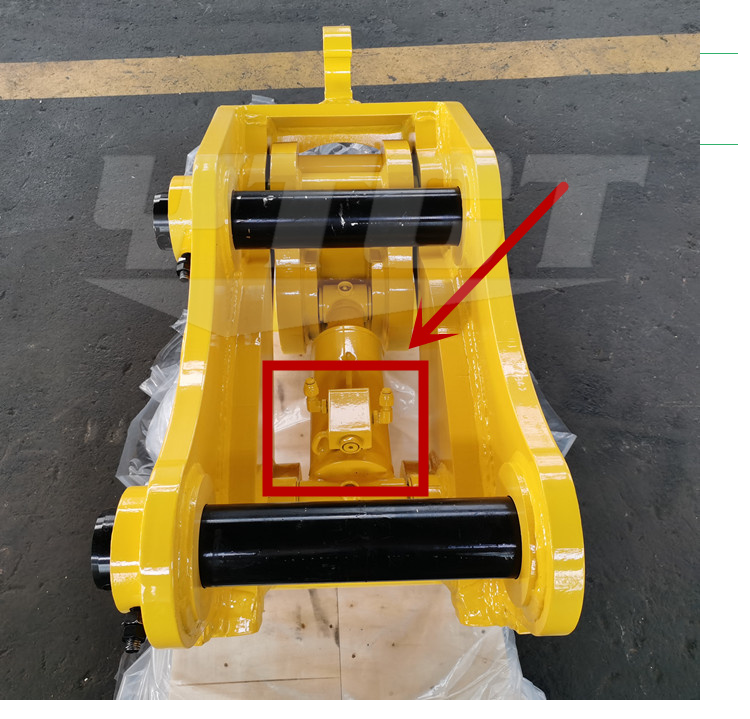

Check valve
Each oil cylinder is equipped with a hydraulic control check valve and a mechanical locking safety device to ensure that the quick connector can work normally when the oil circuit and the circuit are cut off.
Safety pin
Each quick connector is equipped with a safety pin protection system to ensure that the YTCT excavator quick coupler quick connector can work normally in the event of a failure of the quick connector cylinder and play a "double insurance" role.

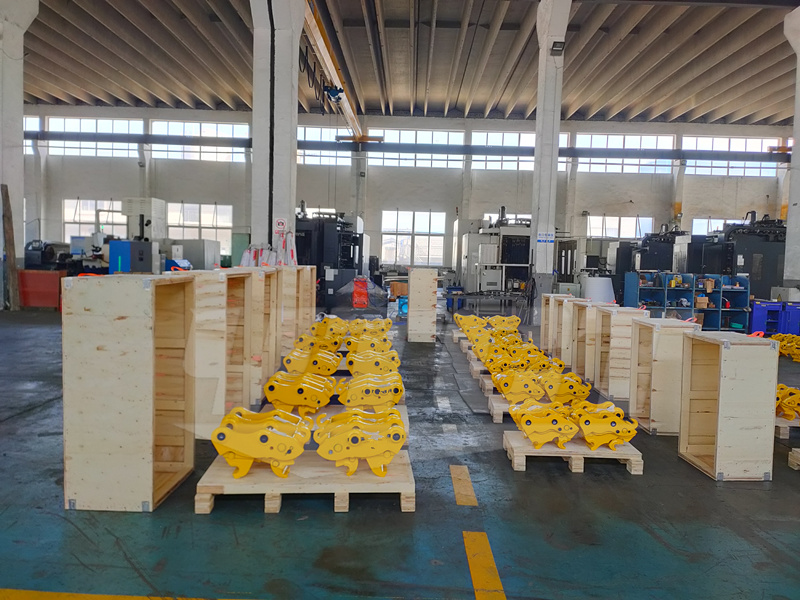

Packing
inside with film .outside with export plywood box .
YTCT hydraulic quick coupler is best, ideal, and suitable for all major excavator brands and sizes. The brand’s hydraulic quick coupler excavator is preferred by most excavator owners and operators because of its ease of use, tight lock, fantastic safety features, and rugged build. Since these hydraulic quick coupler types are versatile, they pair well with all attachment brands.
YTCT hydraulic quick coupler doesn’t require removing pins and excavator spare parts modifications. You’ll only need 10s to know the conversion between hammers and buckets. This tool is applied mainly in working environments requiring frequent attachment changes.
need price or more information ,send us inquiry below,thanks
